KEY FEATURES

• Parallel wired inputs.
• High output transducers

DESCRIPTION

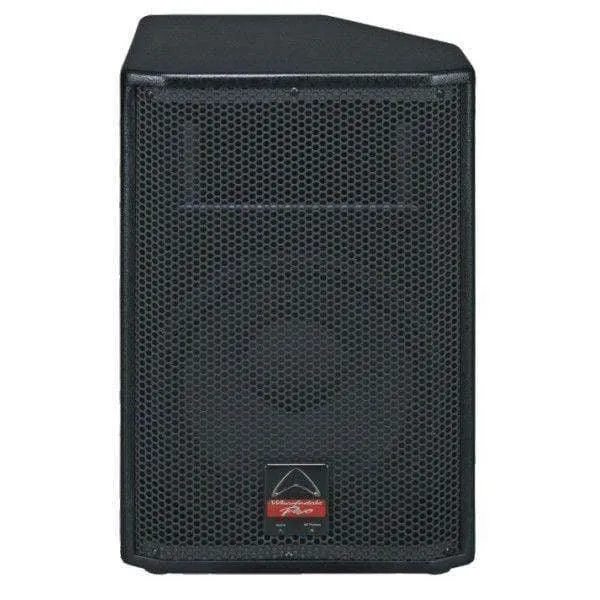

The Vector 12 creates huge sound within a manageable footprint, ensuring portability while providing deep bass, great vocal projection, and a clear top end.

Heavy-duty painted enclosures are partnered with our all-new, proprietary, low distortion, high output transducers, and bespoke hardware to create a road-worthy PA solution that stands above the competition. The versatile design of the Vector 12 facilitates use as a vertically pole-mounted FOH loudspeaker or as a stage-based wedge monitor, it’s a real utility box that gives you maximum versatility whatever the scenario.

The Vector 12 is fitted with a 12” LF driver with a dual-layer 2.5” voice coil that puts out a 300W continuous, 600W program with a 1200W peak running at 8 ohms. That wattage imparts a frequency range of 55Hz -20kHz with a sensitivity of 98dB (1w@1m) to its 90 x 60 coverage pattern. The two-way 12 is crossed over at 2.3kHz and uses a 40W 1” titanium diaphragm to handle its HF. The Vector 12 has a single four-way handle for transport and weighs in at 17.6kg.

SPECIFICATIONS
