Momentary-action, S.P.D.T lighted push-button switch for custom game consoles. The rugged snap-action switch assembly is designed for millions of operations.

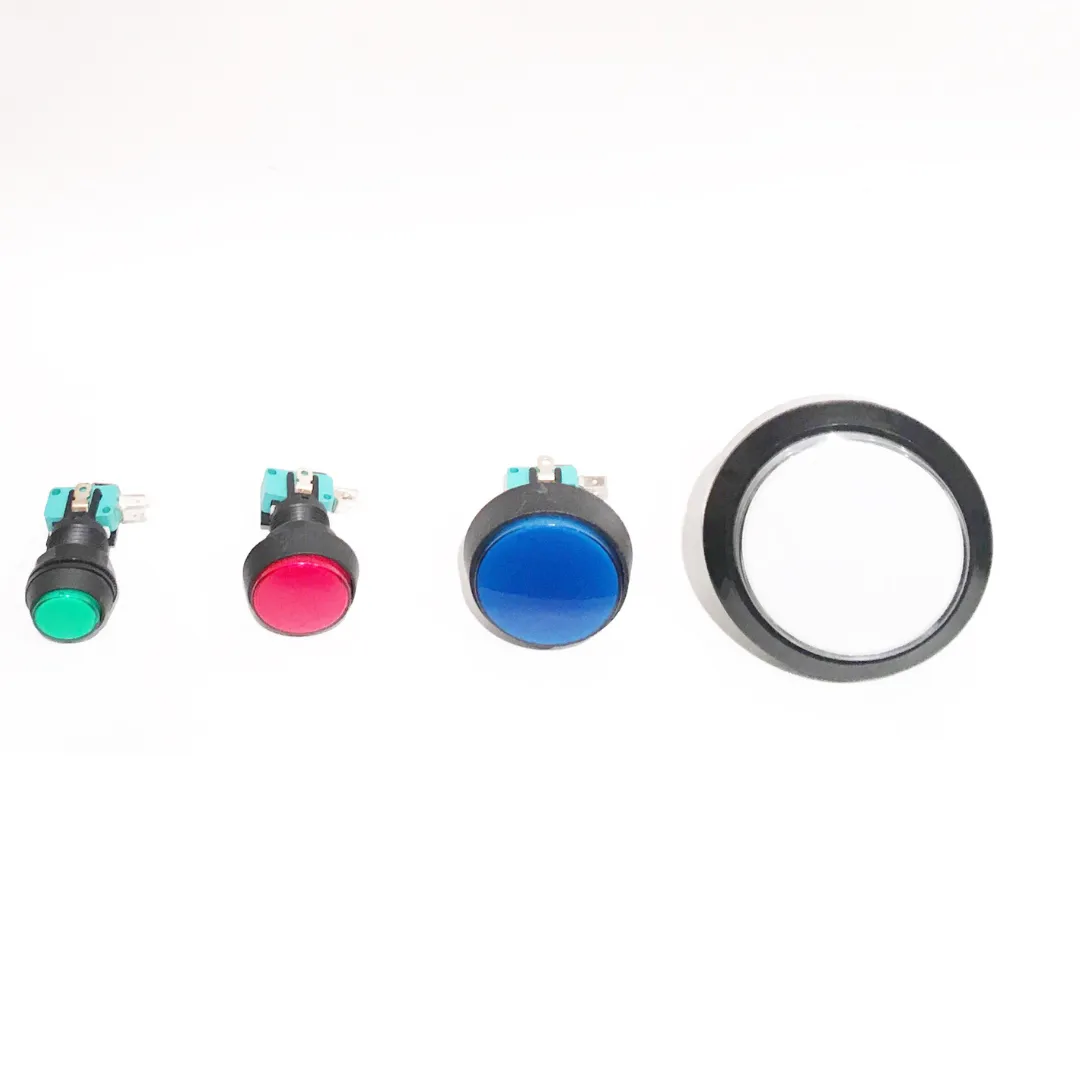

Small 1" inch (27mm) Button:

• Matte black plastic 0.58" high bezel. 27 mm diameter footprint on enclosure.
• Round polycarbonate lens.
• Rated 5 Amps @ 125/250 Vac.
• 6.3mm tabs - both switch and light
• Can accept a replaceable 12 Volt, 3 Watt, #161 wedge-base lamp (not included).
• 0.93" diameter threaded bushing & plastic nut mounts in panels up to 0.70" thick.

Medium 1.5" inch (38mm) Button:

• Matte black plastic 0.58" high bezel. 38 mm diameter footprint on the enclosure.
• Round polycarbonate lens.
• Rated 5 Amps @ 125/250 Vac.
• 6.3mm tabs - both switch and light
• Can accept a replaceable 12 Volt, 3 Watt, #161 wedge-base lamp (not included).
• 0.93" diameter threaded bushing & plastic nut mounts in panels up to 0.70" thick.

Large 2" inch (50mm) Button:

• Matte black plastic 2.44" diameter x 0.58" high bezel. 2.08" polycarbonate lens.
• Rated 5 Amps @ 125/250 Vac.
• 6.3mm tabs - both switch and light
• Can accept a replaceable 12 Volt, 3 Watt, #161 wedge-base lamp (not included).
• 0.93" diameter threaded bushing & plastic nut mounts in panels up to 0.70" thick.

5x 2" inch (46mm) Button

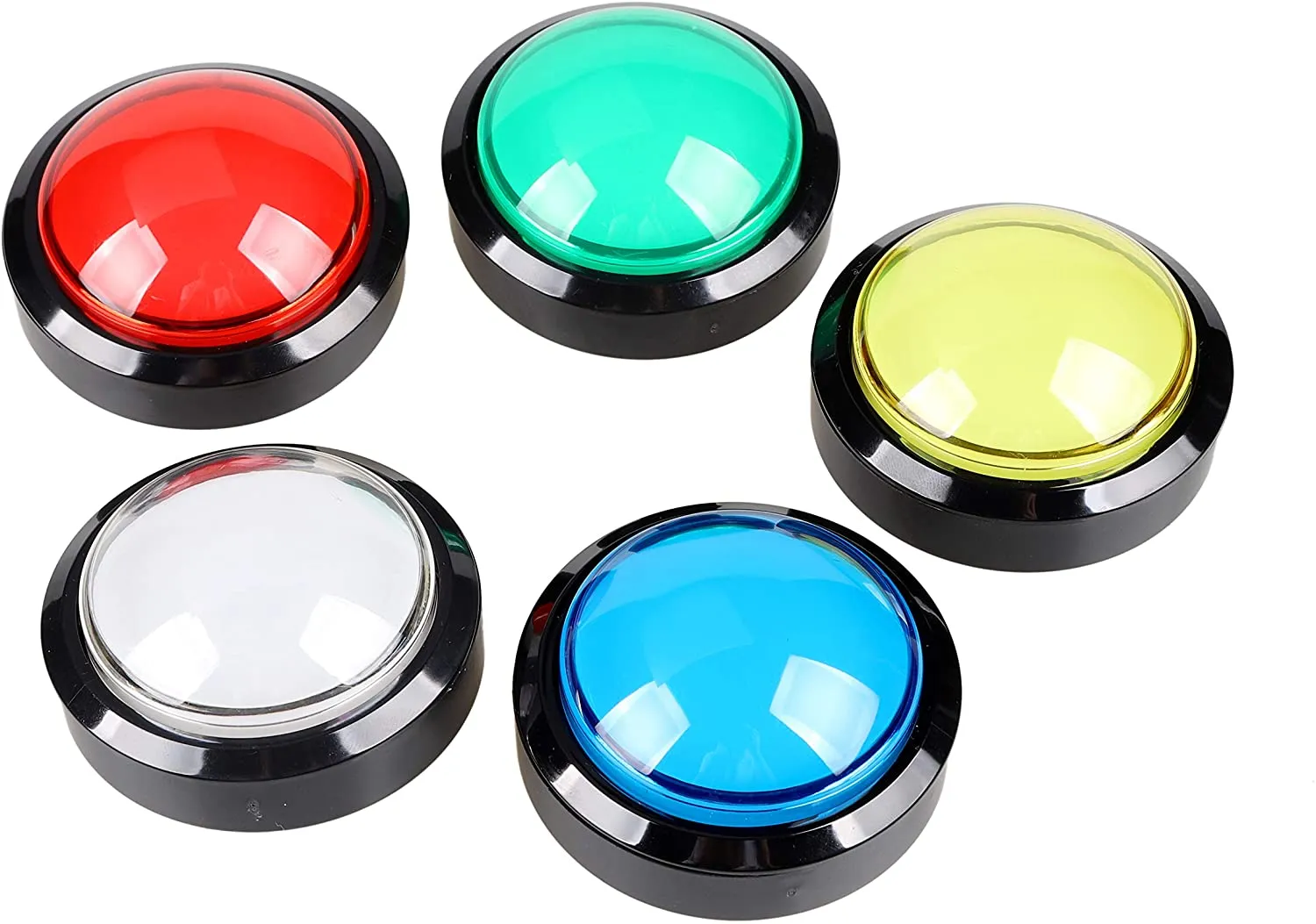

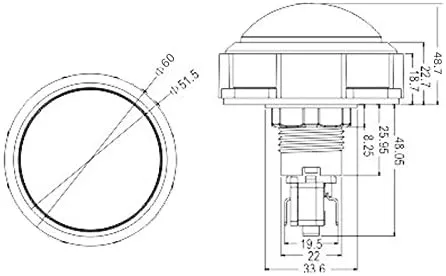

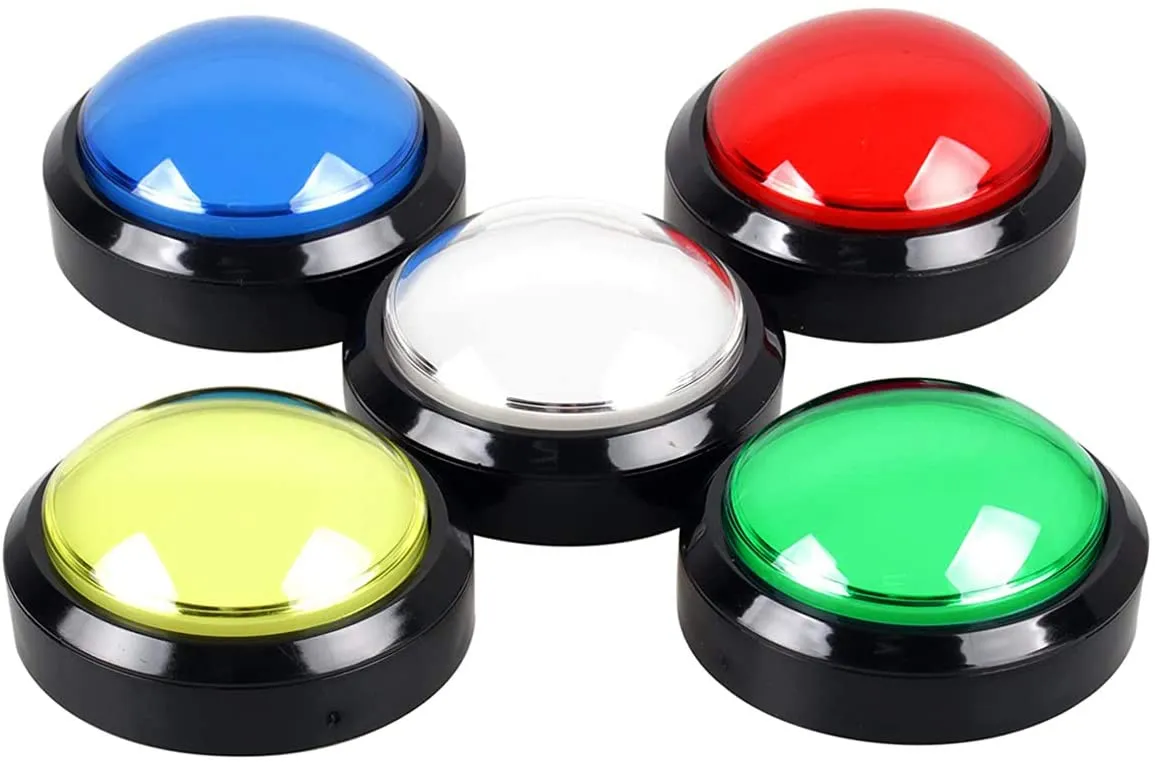

5x 2.4" inch (60mm) Dome Button:

• LED Lights with 6.3mm tabs
• Buttons have 4.8mm tabs
• Colors: Red, Yellow, Blue, Green, White
• Microswitch reliability tested to 1,000,000 cycles!

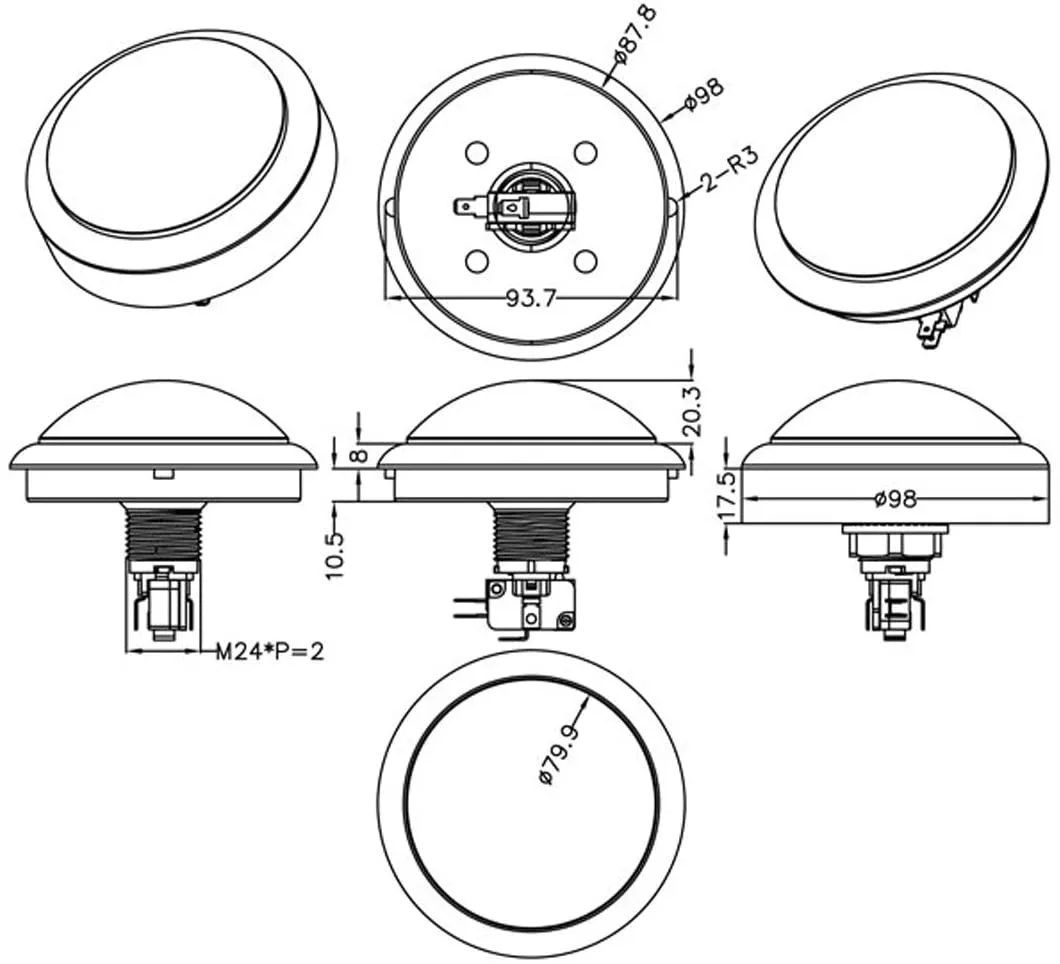

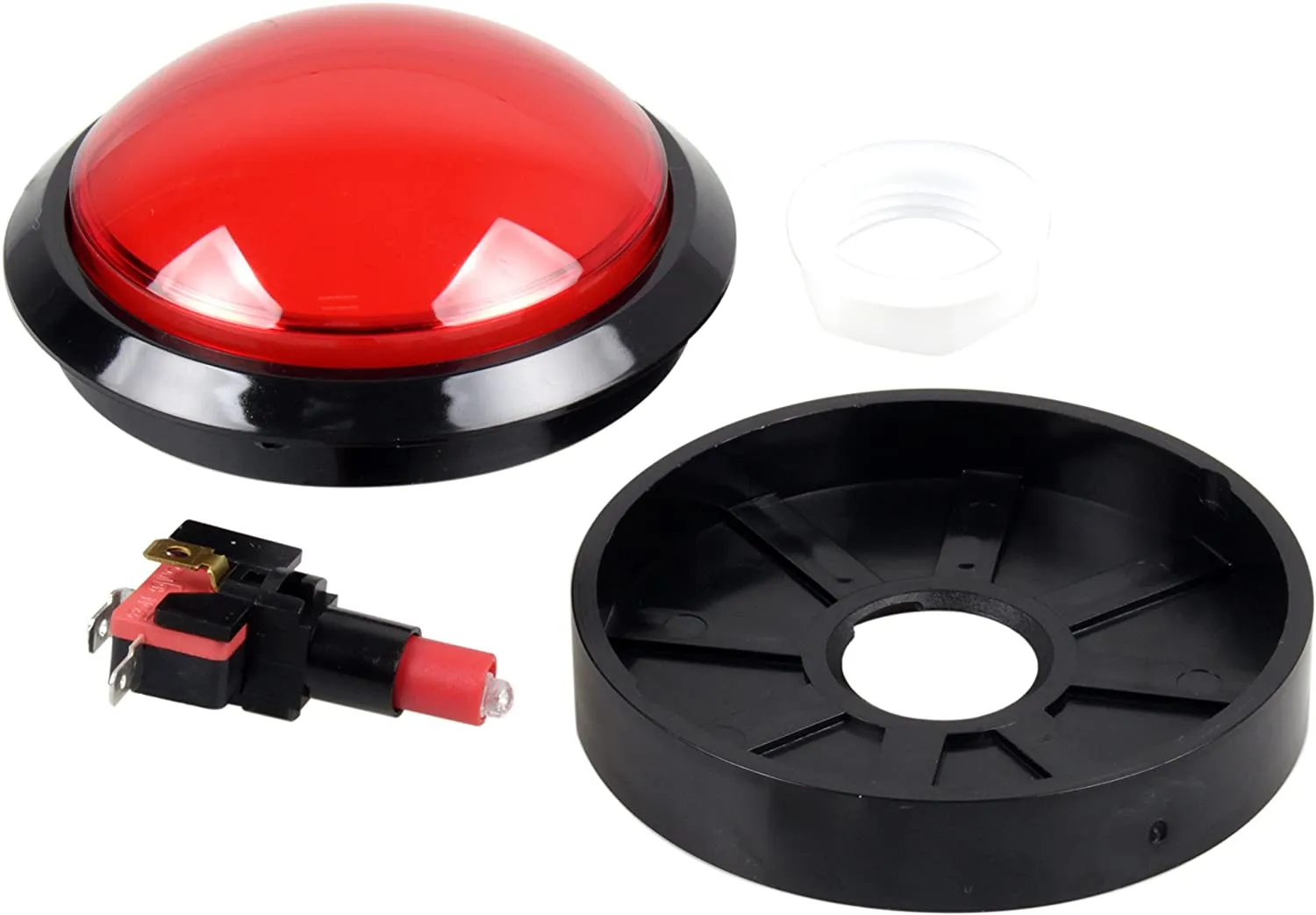

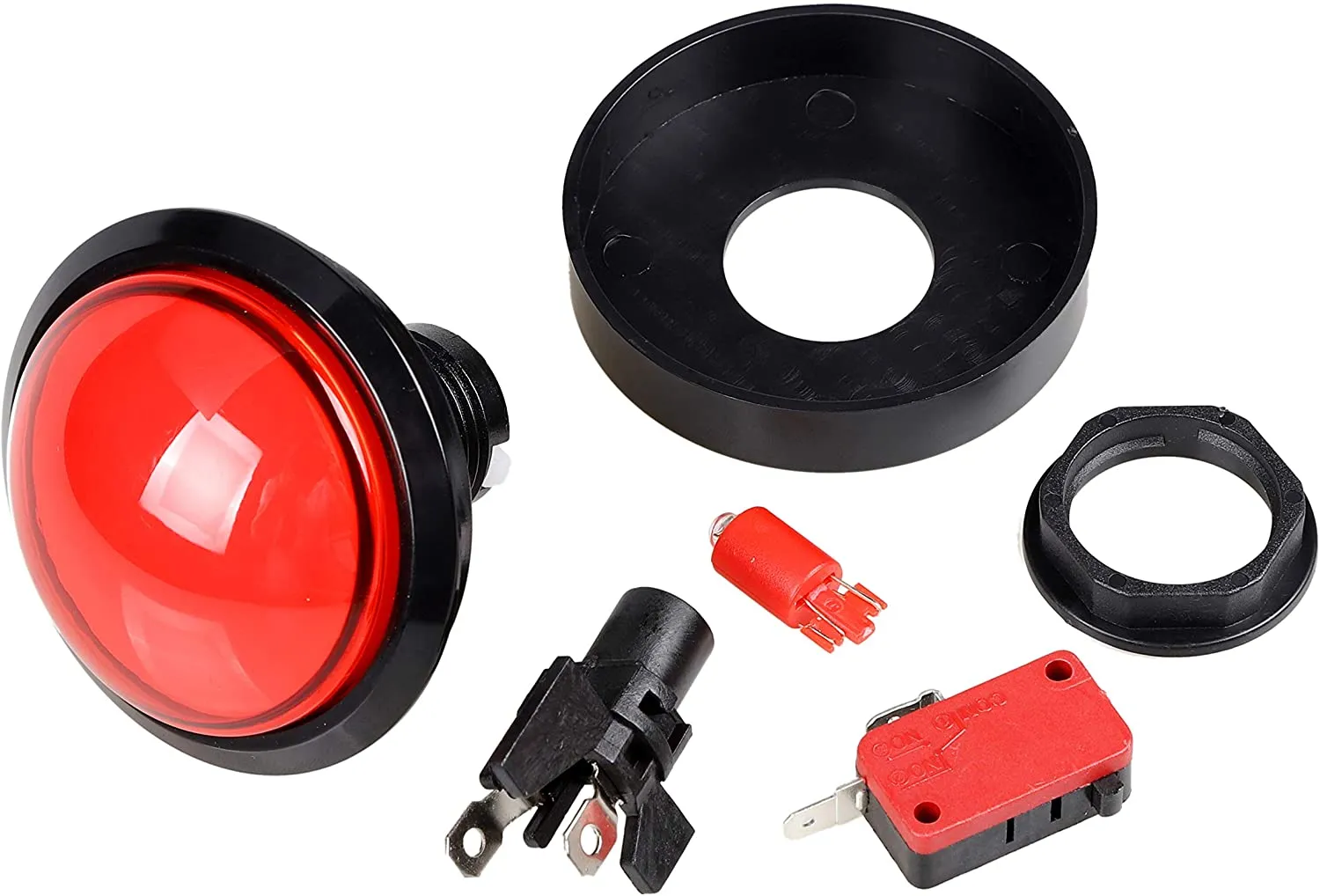

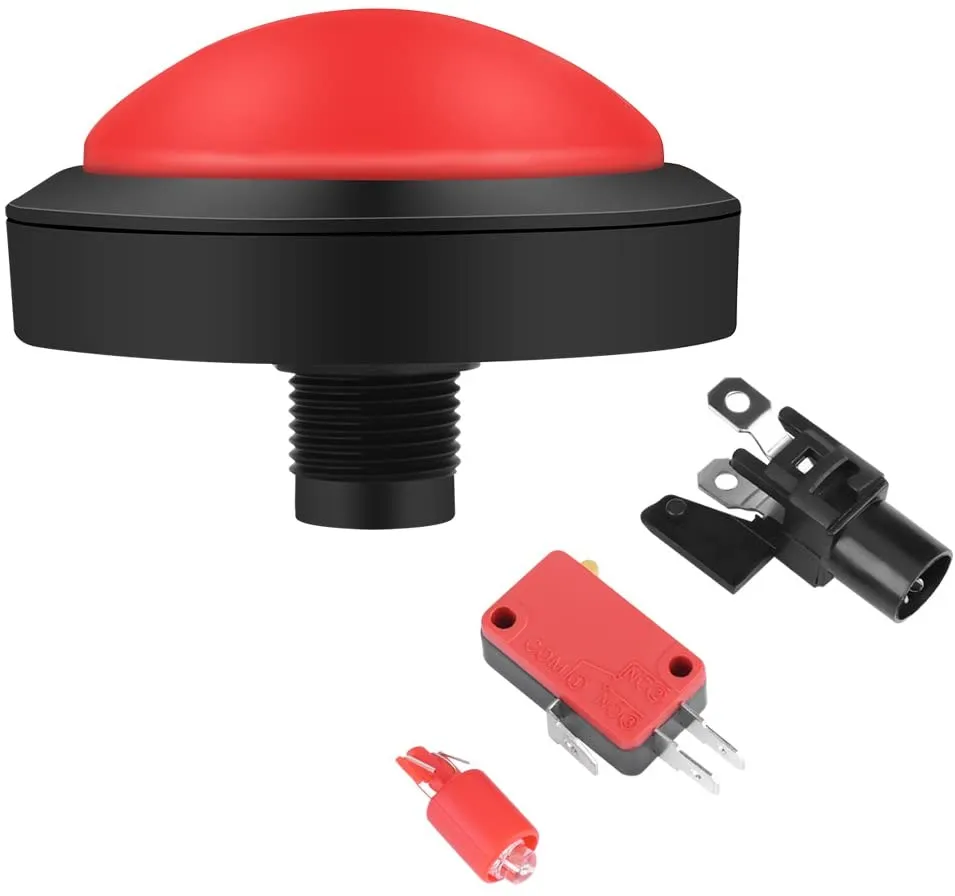

5x XX Large 4" inch (100mm) Dome Button:

• LED Lights with 6.3mm tabs
• Buttons have 4.8mm tabs
• Colors: Red, Yellow, Blue, Green, White
• Microswitch reliability tested to 1,000,000 cycles!
• 88mm or 24mm Mounting Hole Diameter
