● Eyepiece: WF10X/18mm with Scale of Crosshair 0.1mm & 1 Piece WF10X/18mm

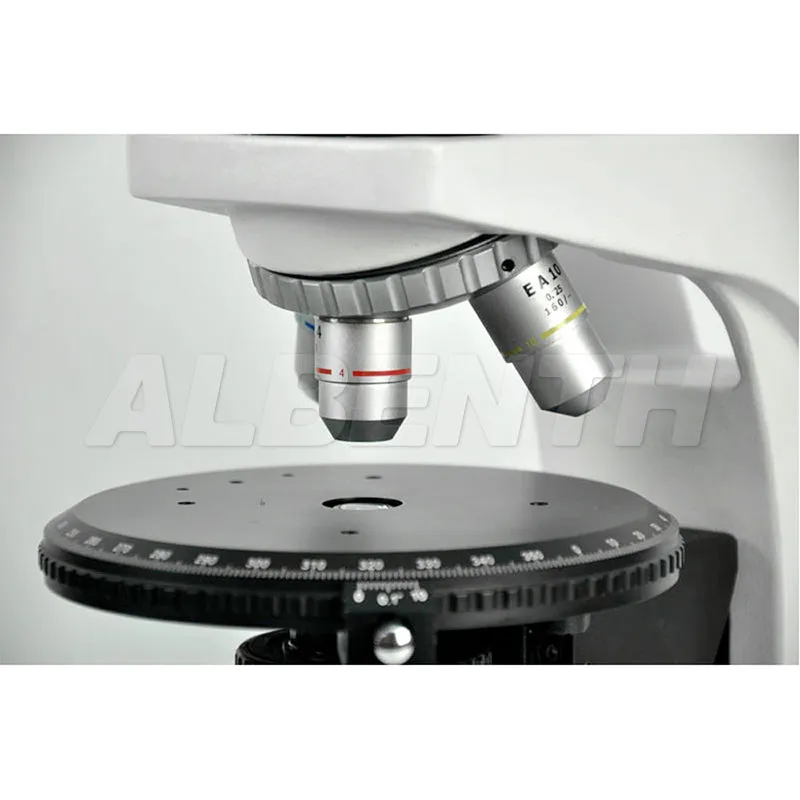

Achromatic Objective: 4X, 10X, 40X, 63X
● Head: Sliding binocular Head, Interpupillary Distance: 55-75mm, 45°Inclined, 360°Rotatable
● Analyzer & Bertrand Lens: Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path Bertrand Lens, Sliding out of Optical Path

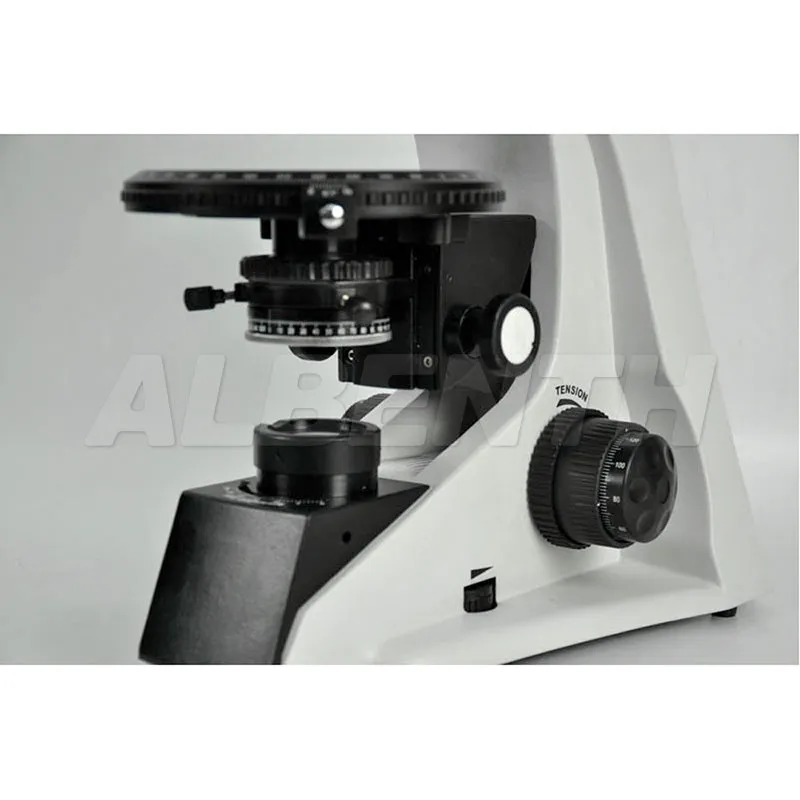

● Stage: Revolving Round Stage: Φ160mm; 360° Rotatable and Graduated 1° Increments, Minimum Resolution 6’ When using Venire Scale, Certer Adjustable
● Condenser: ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter
● Focusing Adjustment: Coaxial Coarse and Fine Focusing Adjustable Mechanism: 35m
Fine Focusing Adjustable precision: 0.002mm
● Others: Optical Compensator: λSlip (First Class Red), 1/4 λSlip; Quartz Wedge
Polarize: On The Light Collector; 360° Rotatable
● Illumination: Built-in Adjustable Brightness 1W LED Lamp
